Multi-function Scoreboard-SD9905a’s Specifications | |
| Sport Scored | Basketball, Football, Handball, Boxing, Volleyball, Tennis, Up/Down Counter, Clock |
| Digit Sizes | 12inch, 8inch, Arrow-shaped indicators |
| Dimensions | H1800 x W1600 x D80mm |
| Casing material | Aluminum Profile |
| Composition | Game time, Period, Arrow-shaped indicators, HOME & GUEST scores, Time out left, Timeout duration, Team fouls |
| Brightness | 5500nits |
| Dimming | 16-level auto-dimming |
| LED type | DIP LED |
| LED lifespan | 100,000 hours |
| Communication | Wire or wireless |
| Power consumption | Max. 150W, Avg.75W |
| Installation | Wall-mounting |
| Power source | 110V or 230V input |
| Operating temperature | Default -20~+50 Celsius degree |
| Humidity | 10% to 95%RH(No condensation) |
| IP level | IP54 |
| All sport controller | LCD handle control box (optional) |
- Home
- //
- Multi-Functional Scoreboard
Multi-function Scoreboard-SD9901aSee Work
Multi-Functional Scoreboard
Multi-Functional Scoreboard: Unmatched Versatility
Feature
Comsight multi-functional LED scoreboards are engineered for ultimate adaptability, serving a wide range of sports and events. Designed with high-brightness LED modules, these multi-functional LED scoreboards deliver exceptional visibility both indoors and outdoors.
- Versatile multi-functional LED scoreboard for various sports and events, easily customizable for different scoring formats and information layouts.
- Features high-brightness LEDs for excellent indoor and outdoor visibility, with multi-level automatic brightness adjustment.
- Simple control via wireless devices such as LCD consoles or PCs for real-time score and data updates.
- Supports a wide voltage input and offers optional backup power for uninterrupted operation.
Multi-function Scoreboard-SD9901a
Composition:
- HOME & GUEST Team name (8 English characters)
- HOME & GUEST scores
- Timeout
- Shot clock
- Period
- Indicators
- Team fouls
- Game time
- Timeout duration
- Horn (external)
Specifications
Multi-Function Scoreboard SD9901a
| Sports Supported | Basketball, Football, Handball, Boxing, Volleyball, Tennis, Up/Down Counter, Clock |
|---|---|
| Digit Sizes | Dot-matrix team name: 16 × 64 pixels (P7.62mm), 2 pcs Score digits: 8 inch / 6 inch Indicators: dots, triangle-shaped indicators |
| Dimensions (H × W × D) | 1000 × 1700 × 80 mm |
| Casing Material | Aluminum Profile |
| Display Composition | Full matrix display including: HOME & GUEST team names (up to 8 English characters) HOME & GUEST scores, period, shot clock, team fouls Game time, timeout, timeout duration, indicators |
| Brightness | Team name matrix: 4000 nits 7-segment digits: 5500 nits |
| Dimming | 16-level automatic brightness adjustment |
| LED Type | DIP LED |
| LED Lifespan | ≥ 100,000 hours |
| Communication | Wired or Wireless |
| Power Consumption | Max. 160W / Average 80W |
| Installation | Wall-mounted |
| Power Input | 110V / 230V AC |
| Operating Temperature | -20°C to +50°C |
| Humidity | 10% – 95% RH (Non-condensing) |
| IP Rating | IP54 |
| Controller | LCD handheld control box (optional) |
Remarks: For detailed specifications or customized scoreboard solutions, please feel free to contact us at [email protected].
Multi-function Scoreboard-SD9902a
Composition:
- HOME & GUEST scores
- Timeout
- Shot clock
- Period
- Indicators
- Team fouls
- Game time
- Timeout duration
- Horn (external)
Specifications
Multi-Function Scoreboard SD9902a
| Sports Supported | Basketball, Football, Handball, Boxing, Volleyball, Tennis, Up/Down Counter, Clock |
|---|---|
| Digit Sizes | 8-inch / 6-inch digits Dots and triangle-shaped indicators |
| Dimensions (H × W × D) | 1000 × 1700 × 80 mm |
| Casing Material | Aluminum Profile |
| Display Composition | HOME & GUEST scores Game time, period Shot clock, team fouls Timeout, timeout duration, indicators |
| Brightness | 5500 nits |
| Dimming | 16-level automatic brightness adjustment |
| LED Type | DIP LED |
| LED Lifespan | ≥ 100,000 hours |
| Communication | Wired or Wireless |
| Power Consumption | Max. 120W / Average 60W |
| Installation | Wall-mounted |
| Power Input | 110V / 230V AC |
| Operating Temperature | -20°C to +50°C |
| Humidity | 10% – 95% RH (Non-condensing) |
| IP Rating | IP54 |
| Controller | LCD handheld control box (optional) |
Remarks: For detailed specifications or customized scoreboard solutions, please feel free to contact us at [email protected].

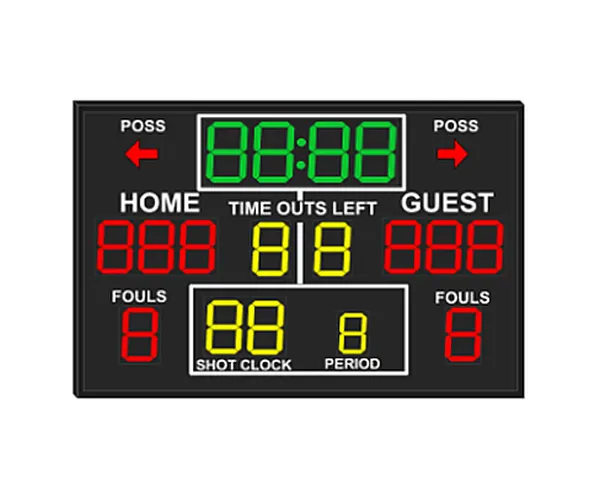

Multi-function Scoreboard-SD9903a
Composition:
- Game time
- Arrow-shaped indicators
- HOME & GUEST scores
- Timeout left
- Timeout duration
- Shot clock
- Period
- Team fouls
- Horn (external)
Specifications
Multi-Function Scoreboard SD9903a
| Sports Supported | Basketball, Football, Handball, Boxing, Volleyball, Tennis, Up/Down Counter, Clock |
|---|---|
| Digit Sizes | 12-inch / 8-inch / 6-inch digits Arrow-shaped indicators |
| Dimensions (H × W × D) | 1250 × 1600 × 80 mm |
| Casing Material | Aluminum Profile |
| Display Composition | Game time HOME & GUEST scores Shot clock, period, team fouls Time out left, timeout duration Arrow-shaped indicators |
| Brightness | 5500 nits |
| Dimming | 16-level automatic brightness adjustment |
| LED Type | DIP LED |
| LED Lifespan | ≥ 100,000 hours |
| Communication | Wired or Wireless |
| Power Consumption | Max. 180W / Average 90W |
| Installation | Wall-mounted |
| Power Input | 110V / 230V AC |
| Operating Temperature | -20°C to +50°C |
| Humidity | 10% – 95% RH (Non-condensing) |
| IP Rating | IP54 |
| Controller | LCD handheld control box (optional) |
Remarks: For detailed specifications or customized scoreboard solutions, please feel free to contact us at [email protected].
Multi-function Scoreboard-SD9904a
Composition:
- Game time
- Period
- Arrow-shaped indicators
- HOME & GUEST scores
- Timeout left
- Timeout duration
- Team fouls
- Horn (external)
Specifications
Multi-Function Scoreboard SD9904a
| Sports Supported | Basketball, Football, Handball, Boxing, Volleyball, Tennis, Up/Down Counter, Clock |
|---|---|
| Digit Sizes | 8-inch / 6-inch digits Arrow-shaped indicators |
| Dimensions (H × W × D) | 1000 × 1500 × 80 mm |
| Casing Material | Aluminum Profile |
| Display Composition | Game time, period HOME & GUEST scores Team fouls Time out left, timeout duration Arrow-shaped indicators |
| Brightness | 5500 nits |
| Dimming | 16-level automatic brightness adjustment |
| LED Type | DIP LED |
| LED Lifespan | ≥ 100,000 hours |
| Communication | Wired or Wireless |
| Power Consumption | Max. 120W / Average 60W |
| Installation | Wall-mounted |
| Power Input | 110V / 230V AC |
| Operating Temperature | -20°C to +50°C |
| Humidity | 10% – 95% RH (Non-condensing) |
| IP Rating | IP54 |
| Controller | LCD handheld control box (optional) |
Remarks: For detailed specifications or customized scoreboard solutions, please feel free to contact us at [email protected].
Multi-function Scoreboard-SD9905a
Composition:
- Game time
- Period
- Arrow-shaped indicators
- HOME & GUEST scores
- Timeout left
- Timeout duration
- Team fouls
- Horn (external)
Specifications
Q & A
What is a multi-functional LED scoreboard?
+A multi-functional LED scoreboard is a digital display system designed to support multiple sports, allowing flexible configuration for scores, time, team names, and game indicators.
What is the main function of a scoreboard?
+A scoreboard provides real-time match information such as scores, game time, periods, and fouls, ensuring clear communication for players, officials, and spectators.
How does a multi-functional LED scoreboard work?
+It uses high-brightness LED modules controlled by a wired or wireless system. Operators update scores and game data instantly via a control console or PC software.
What are common features of a multi-functional LED scoreboard?
+Common features include high brightness, auto dimming, wireless control, multi-sport modes, team name displays, shot clocks, and durable aluminum housing.
Are there different types of scoreboards?
+Yes. Scoreboards include indoor, outdoor, portable, and multi-functional LED scoreboards, each designed for specific venues and sports requirements.
How much does a multi-functional LED scoreboard cost?
+The cost varies based on size, brightness, functions, control system, and customization. Pricing is usually determined by project specifications.
