Q320 – A Standardized Platform for Custom Outdoor EMC Signage Solutions
Standardized Platform. Customized Outdoor Electronic Message Centers.
Create customized outdoor LED message centers faster and more reliably with a proven platform.
More flexibility for your customers. Less complexity for your projects.
Create customized outdoor LED message centers faster and more reliably with a proven platform.
More flexibility for your customers. Less complexity for your projects.
Previous
Next
Why Choose Q320 for Outdoor EMC Signage?
A Better Way to Deliver Customized EMC Solutions
- Flexible Custom Designs: Different sizes and shapes from one proven platform.
- Consistent Quality: Standardized components and a proven design for reliable, consistent performance.
- Faster Project Delivery: Ready-to-configure platform reduces engineering work and speeds up delivery.
- Factory-Configured Installation: Minimize onsite work and streamline installation.
- Smart Self-Diagnostics: Monitors key operating conditions and alerts before issues become critical.
- Easier Maintenance & Long-Term Support: Standardized parts and procedures simplify service, replacement, and future upgrades.
Table of Contents
Q320 Outdoor EMC Signage Platform Overview
Standardized Platform. Customized Outdoor Electronic Message Centers.
Q320 is a standardized outdoor EMC platform based on a 320 × 320mm die-cast aluminum cabinet.
Unlike traditional custom EMC projects that require a new cabinet design for each application, Q320 uses a proven platform and achieves customization through flexible configuration and factory-integrated assembly.
By combining multiple Q320 units, customers can create customized LED message centers with different dimensions, structures, and pixel pitches.
One proven platform. Many customized possibilities.
Q320 Outdoor EMC Signage Features
1．Flexible Configurations for Different Sizes and Shapes
Create Unique EMC Designs without Starting From Scratch
Q320 uses a standardized 320 × 320 mm cabinet platform that supports different display layouts and architectural designs.
Available configurations: Rectangular · L-shaped · T-shaped · U-shaped · Door-frame · Curved-corner
COMSIGHT has developed dedicated corner structures that integrate with Q320 cabinets, enabling more seamless architectural and curved LED display designs.
Standardized platform. Customized appearance.
1.1 Design for L-shaped · T-shaped · U-shaped · Door-frame:

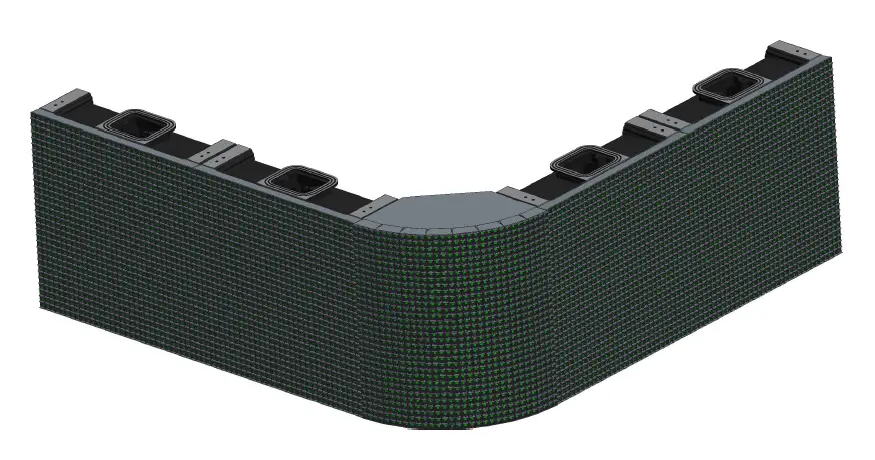

1.2 Design for Curved-corner:

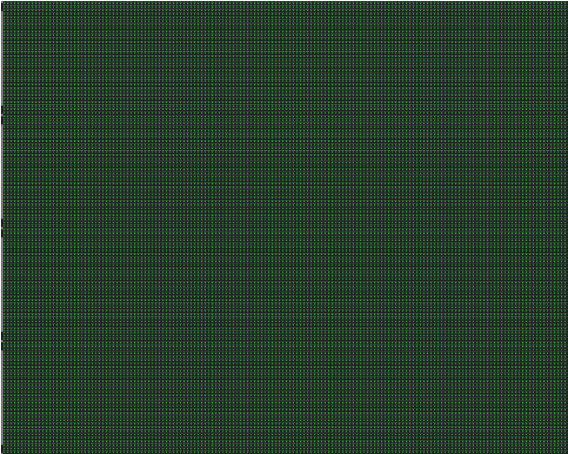

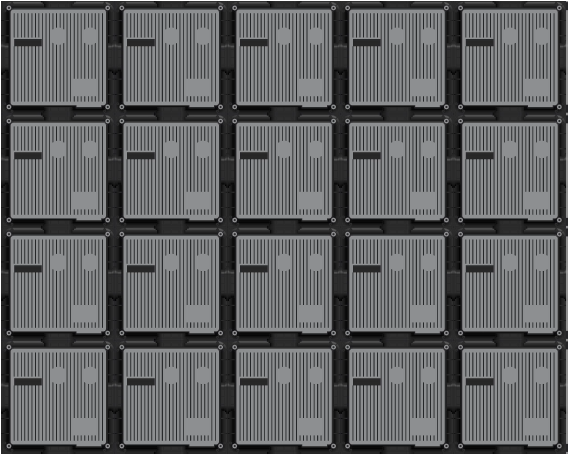

1.3 Design for Rectangular:
2．Factory-Configured Before Shipment
Customized for Your Project. Prepared for Faster Installation.
Based on the required display size and shape, multiple Q320 cabinets are combined into larger project-specific sections and fully assembled before shipment. Each section is factory-prepared with:
- Component installation: Power supplies, control cards, fans, monitoring circuits, and other internal components are factory-installed
- Internal wiring: Power and signal connections are completed within each section
- Ready-to-connect interfaces: External power and signal connections are prepared for quick onsite connection
At the project site, the sections only need to be mounted and connected for power and signal.
3 . Easier Q320 Maintenance and Long-Term Support
A standardized platform simplifies maintenance, replacement, and future upgrades.
With consistent components and a proven design, Q320 makes spare parts, service procedures, and future expansion easier to manage throughout the product lifecycle.
Easy to Upgrade in the Future
Q320 supports P4, P5, P6.67, P8, P10, P13.3 and P16 LED modules. A display may be upgraded by replacing compatible LED modules, subject to review of the existing cabinet, power, control and module configuration.
One platform. Standardized parts. Easier service and upgrades.

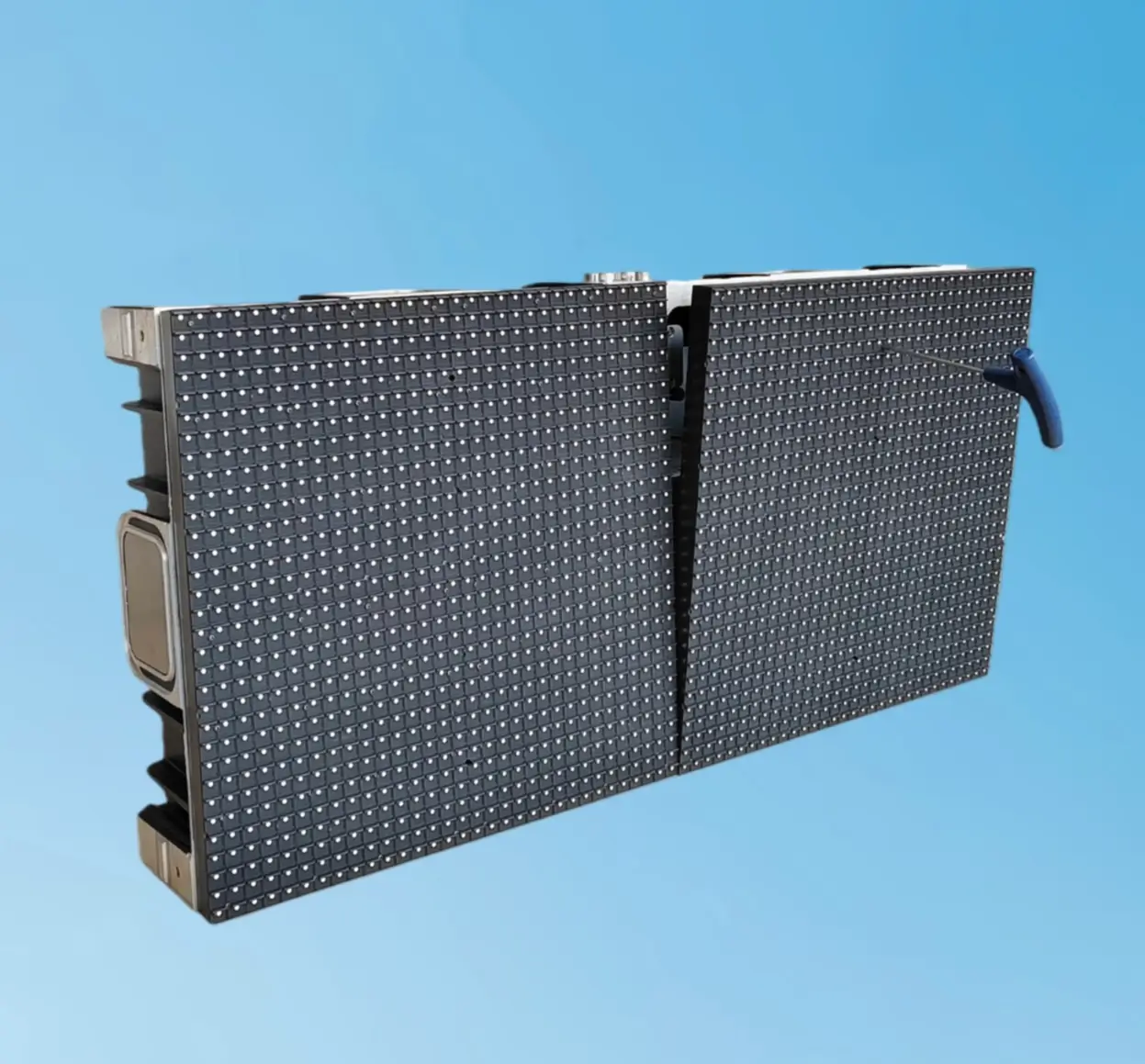

Front Maintenance
Front Maintenance (Easy access to LED modules and internal components from the front.)
Easy to Upgrade in the Future
Built for Today, Ready for Tomorrow.（P10 Today → Simple Module Replacement → P4 Tomorrow）
4. Intelligent Outdoor Operation
Smart Monitoring, Thermal Management & Information Control
Outdoor LED message centers operate continuously under changing environmental conditions.
Q320 integrates intelligent monitoring, thermal management, brightness control, and information management functions to support reliable operation and simplify maintenance.
Smart Self-Diagnostic System
Detect Problems Before They Become Critical
Q320 continuously monitors temperature, power supplies, SPD status and fan operation. When an abnormal condition is detected, the system reports the monitored status so the service team can prepare before visiting the site.
- Temperature: Three-level protection starts the fans, reduces brightness and initiates protective shutdown when required. The display recovers automatically after it cools.
- Power supply: Remote monitoring helps identify a failed power module so the service team knows what to bring.
- SPD: The system alerts the operator when surge protection fails.
- Fan: Real-time RPM tracking helps detect fan failure before overheating occurs.
Intelligent Multi-Level Fan Speed Control
Cooling When Needed. Quiet When Possible.
Q320 automatically adjusts fan speed based on internal temperature. Fans run faster when additional cooling is required and slow down when it is not, helping reduce noise, fan wear and unnecessary power consumption.
Intelligent Brightness Control
Clear When Bright. Comfortable When Dark.
Q320 automatically adjusts display brightness to ambient-light conditions, maintaining visibility in bright environments while reducing glare and unnecessary power consumption in darker conditions.
Brightness control also supports project requirements and local regulations.
256-level · Automatic · Scheduled · Manual
Intelligent Information Display & Remote Management
Q320 can display accurate time and real-time outdoor temperature, while cloud-based management enables remote content updates and multi-display management.
- Accurate Time: Temperature-compensated RTC, time-zone and daylight-saving support, with optional NTP synchronization.
- Outdoor Temperature: Real-time temperature display with an external sensor; Celsius and Fahrenheit are supported.
- Cloud Management: Update content remotely and manage multiple displays from one platform.
5. Q320 vs Traditional Custom EMC Solutions
Q320 does not replace custom EMC solutions. It provides a more standardized way to deliver many types of customized EMC projects.
Item | Traditional Custom EMC Solutions | Q320 Platform |
Design Approach | Project-specific cabinet design | Standardized platform approach |
Customization | Cabinet-level customization | Flexible configuration based on a proven platform |
Project Preparation | Longer engineering cycle | Faster project response |
Quality Consistency | Depends on individual project design and production | Consistent quality based on a proven platform |
Installation | More onsite assembly work | Factory-configured installation sections |
Maintenance & Upgrades | Project-specific maintenance and upgrade requirements | Standardized maintenance and easier lifecycle management |
ETL Certification | Certified | Certified |
CE Certification | Based on each project design | Certification in Progress |
For CE-marked projects, traditional custom EMC solutions generally require certification based on the specific project design.
Projects that require extremely unusual dimensions, non-standard modules or special mechanical structures can be reviewed as fully customized EMC solutions.
Outdoor EMC Sign Applications for Schools, Churches and Businesses
Q320 EMC signage can be configured for organizations that need to publish frequently updated information outdoors.
- SchoolsAnnouncements · Events · Emergency messages · Time and temperatureLearn more about LED signs for schools.
- ChurchesWelcome messages · Service schedules · Events · Community informationLearn more about LED signs for churches.
- Healthcare CentersFacility information· service announcements· visitor guidance
- Retail & Shopping CentersPromotions· brand messages· events· store information
- Hotels & HospitalityWelcome messages· guest information· events· time & temperature
- Municipal & CommunityPublic announcements· community information· emergency notifications
Outdoor LED EMC Sign Specifications
Item | Specification |
Product Type | Outdoor LED Message Center Platform |
Cabinet Size | 320 × 320 × 89 mm |
Cabinet Material | Die-cast Aluminum |
Pixel Pitch | P4 / P5 / P6.67 / P8 / P10 / P13.3 / P16 (Additional pixel pitches available) |
Brightness (cd/m(2)) | P4 / P5: 5000-5500, P6.67 / P8 / P10 / P13.3 / P16: 5000-5500 or 8000(SMD with optical Lens) |
Brightness Control | 256 Levels, Automatic, Scheduled, Manual |
Thermal Management | Temperature Monitoring / Multi-Level Fan Speed Control |
Fan Monitoring | Fan Operation Detection |
Power Monitoring | Power Supply Fault Monitoring |
SPD Monitoring | SPD Failure Detection |
Time Functions | Temperature-Compensated RTC / NTP Synchronization / Manual Time Setting |
Control System | WZP Controller / Industrial PC |
Remote Management | Cloud Platform |
Maintenance | Front Maintenance |
Configuration | Factory-configured installation sections |
Certification | ETL Certified / CE Certification in Progress |
Protection Grade | Front: IP65 / Rear: IP54 (default) |
Operating Temperature | -30°C to +55°C |
Operating Humidity | 10%~95%RH (No condensation) |
Power Input | AC 100~230V ±10% /50~60Hz |
Outdoor EMC Signage FAQs
Traditional custom EMC solutions provide maximum flexibility, but each project usually requires new engineering and mechanical development.
Q320 provides customized display solutions while reducing project complexity through a proven platform.
No. Q320 supports different sizes, layouts, and special structures including L-shape, T-shape, U-shape, corner, and curved solutions.
COMSIGHT prepares Q320 units into project-specific installation sections before shipment, minimizing onsite assembly and simplifying installation.
Its standardized platform makes replacement parts, maintenance procedures, and future upgrades easier to manage throughout the product lifecycle.
Q320 is ETL certified, while CE certification is currently in progress. Traditional custom EMC solutions can also be assessed for CE compliance based on their specific project design.
Traditional custom EMC solutions may still be suitable for:
- Extremely unusual dimensions
- Non-standard modules
- Special mechanical structures
COMSIGHT provides both Q320 platform solutions and customized EMC solutions.
Build Your Next Custom EMC Solution on a Proven Platform
Q320 helps LED sign companies and system integrators create customized outdoor LED message centers with greater efficiency, reliability, and long-term value.
More flexibility for your customers. Less complexity for your projects.
